$14,199.00

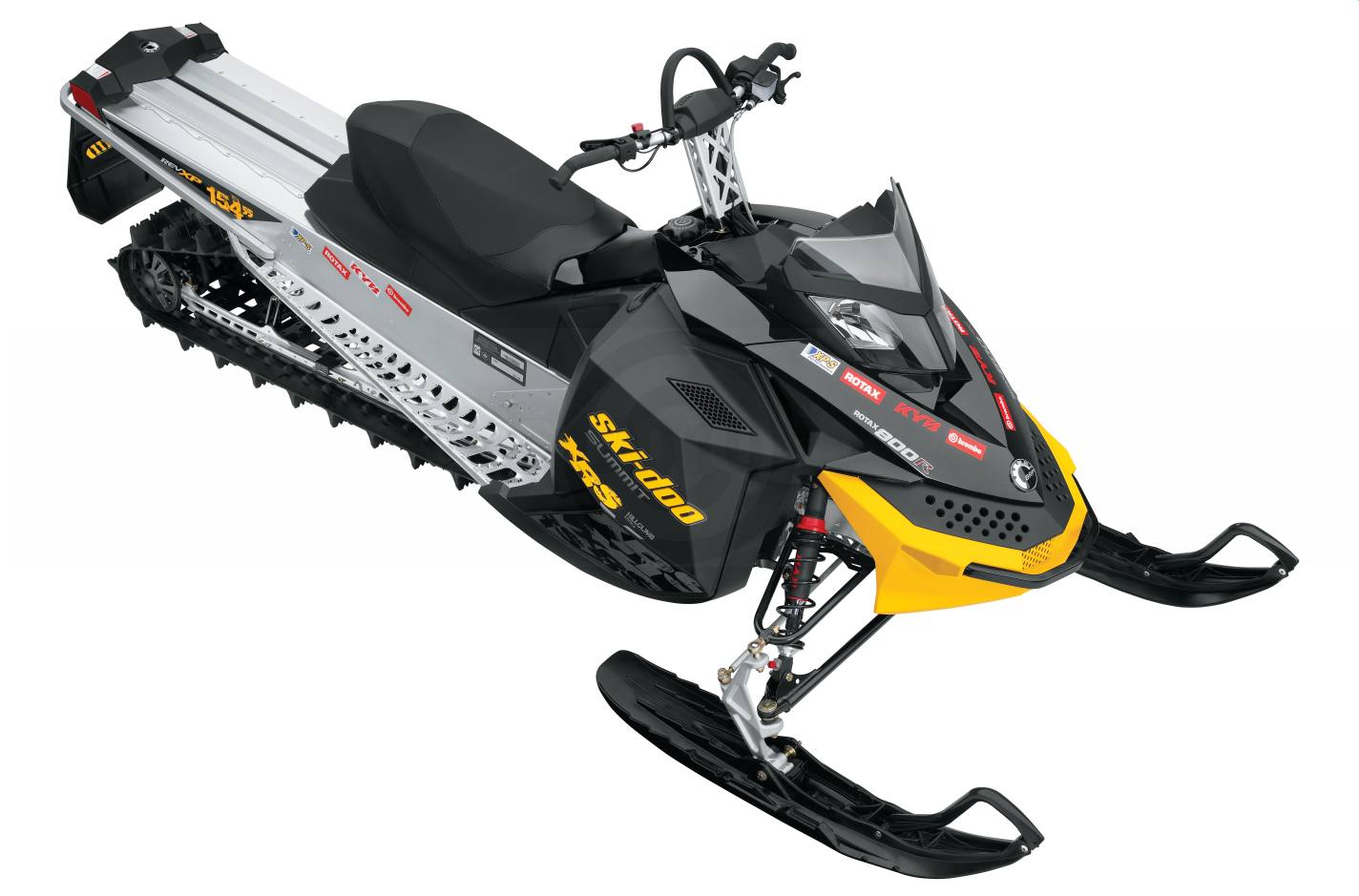

2010 Ski-Doo Summit X-RS Hillclimb Edition
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

They said it was impossible to break 3 pounds per horsepower. That’s exactly why we did it.


The 2010 Summit. A perfect example of what can happen when innovative design meets advanced engineering. Built on the impossibly light yet strong REV-X platform, Summit remains the only mountain sled to break 3 pounds per horsepower. Translating to easier climbs, higher highmarks and the ability to boondock where others wouldn’t dare. Just another way that our engineers and designers are keeping Summit exactly where it belongs. On top.

  • Frame: REV-XP
  • Skis: Pilot 6.9
  • Seating: REV-XP X Narrow
  • Handlebar: Aluminum with J-hooks / Riser block (205 mm / 8 in) / Mountain strap
  • Electric start: Optional
  • Reverse: RER
  • Heated throttle lever: Standard
  • Heated grips: Standard
  • Speedometer: Standard
  • Tachometer: Standard
  • Fuel gauge: Standard
  • Temperature gauge: Optional
  • Mirrors: Optional
  • Windshield: 140 mm / 5.5 in
  • Carbide runner: Standard
  • Hitch: Optional
Package Highlights
  • 151 hp Rotax™ 800R PowerTEK engine choice
  • REV-XP™ platform
  • Brembo racing brake with braided stainless-steel brake line
  • Lightweight chromoly front suspension lower A-arm
  • SC™-5M rear suspension with reinforced rails and 4th idler wheel.
  • HPG™ Plus R aluminum front shocks with no-tool rebound adjuster
  • KYB Pro 36 aluminum piggy-back rear shocks
  • with dual-speed compression adjusters
  • 154-inch PowderMax track
  • Pilot™ 6.9 skis
  • Multi-function digital gauge w/display and 3 minute high sampling record mode
  • Riser block / low windshield
  • RER™ electronic reverse
  • Adjustable ski stance
  • Wide ski stance
  • NEW REV-XP X Narrow seat
Engine
  • Engine: Rotax 800R PowerTEK
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 799.5 cc / 48.8 in³
  • Bore: 82 mm / 3.2 in
  • Stroke: 75.7 mm / 3 in
  • Max. engine speed: 8150 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Premium unleaded
  • Min. octane: 91
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank capacity: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
Powertrain
  • Drive clutch type: TRA™ VII
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Small sprocket number of teeth: 21
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo racing brake with braided stainless-steel brake line
Suspension
  • Front suspension: RS Dual A-arm
  • Front shock: HPG Plus R
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5M
  • Center shock: HPG Plus
  • Rear shock: KYB Pro 36
  • Rear suspension max. travel: 381 mm / 15 in
Dimensions
  • Vehicle overall length: 3310 mm / 130.3 in
  • Vehicle overall width: 1255 to 1298 mm / 49.4 to 51.1 in
  • Vehicle overall height: 1000 mm / 39.4 in
  • Official dry weight: 205 kg / 451 lb
  • Ski stance: 1057 mm to 1092 mm / 41.6 to 43 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 175 mm / 6.9 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3923 mm / 154 in
  • Track profile height: 57.2 mm / 2.25 in
Color
  • Deep Black

Specifications

Engine
Engine Type Rotax 800R PowerTEK
Displacement 799.5 cc (48.8 cu. in.)
Cylinders 2
Bore x Stroke Bore: 82 mm (3.2 in.) ; Stroke: 75.7 mm (3 in.)
Engine Cooling Liquid-cooled, 3-D R.A.V.E.™
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo racing brake with braided stainless-steel brake line
Drive Clutch TRA™ VII
Driven Clutch QRS
Suspension
Front Suspension RS Dual A-arm
Front Travel 229 mm (9 in.)
Rear Suspension SC-5M
Rear Travel 381 mm (15 in.)
Ski Type Pilot 6.9
Ski Stance 1057 mm to 1092 mm / 41.6 to 43 in
Track Dimensions Track nominal width: 406 mm (16 in.); Track nominal length: 3923 mm (154 in.); Track profile height: 57.2 mm (2.25 in.)
General
Speedometer Standard
Tachometer Standard
Fuel Capacity 40 l (10.6 gal)
Dry Weight 205 kg (451 lbs.)
Windshield 140 mm (5.5 in.)
Color Deep Black
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2010
Manufacturer Ski-Doo
Model Summit X-RS Hillclimb Edition
Style Mountain
MSRP* $14,199.00
Drivetrain
Brake Type Brembo racing brake with braided stainless-steel brake line
Drive Clutch TRA™ VII
Driven Clutch QRS
Engine
Engine Type Rotax 800R PowerTEK
Displacement 799.5 cc (48.8 cu. in.)
Bore x Stroke Bore: 82 mm (3.2 in.) ; Stroke: 75.7 mm (3 in.)
Cylinders 2
Engine Cooling Liquid-cooled, 3-D R.A.V.E.™
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer
Headlight
Fuel Capacity 40 l (10.6 gal)
Dry Weight 205 kg (451 lbs.)
Windshield 140 mm (5.5 in.)
Color Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional
Suspension
Front Suspension RS Dual A-arm
Front Travel 229 mm (9 in.)
Rear Suspension SC-5M
Rear Travel 381 mm (15 in.)
Ski Type Pilot 6.9
Ski Stance 1057 mm to 1092 mm / 41.6 to 43 in
Track Type
Track Dimensions Track nominal width: 406 mm (16 in.); Track nominal length: 3923 mm (154 in.); Track profile height: 57.2 mm (2.25 in.)
