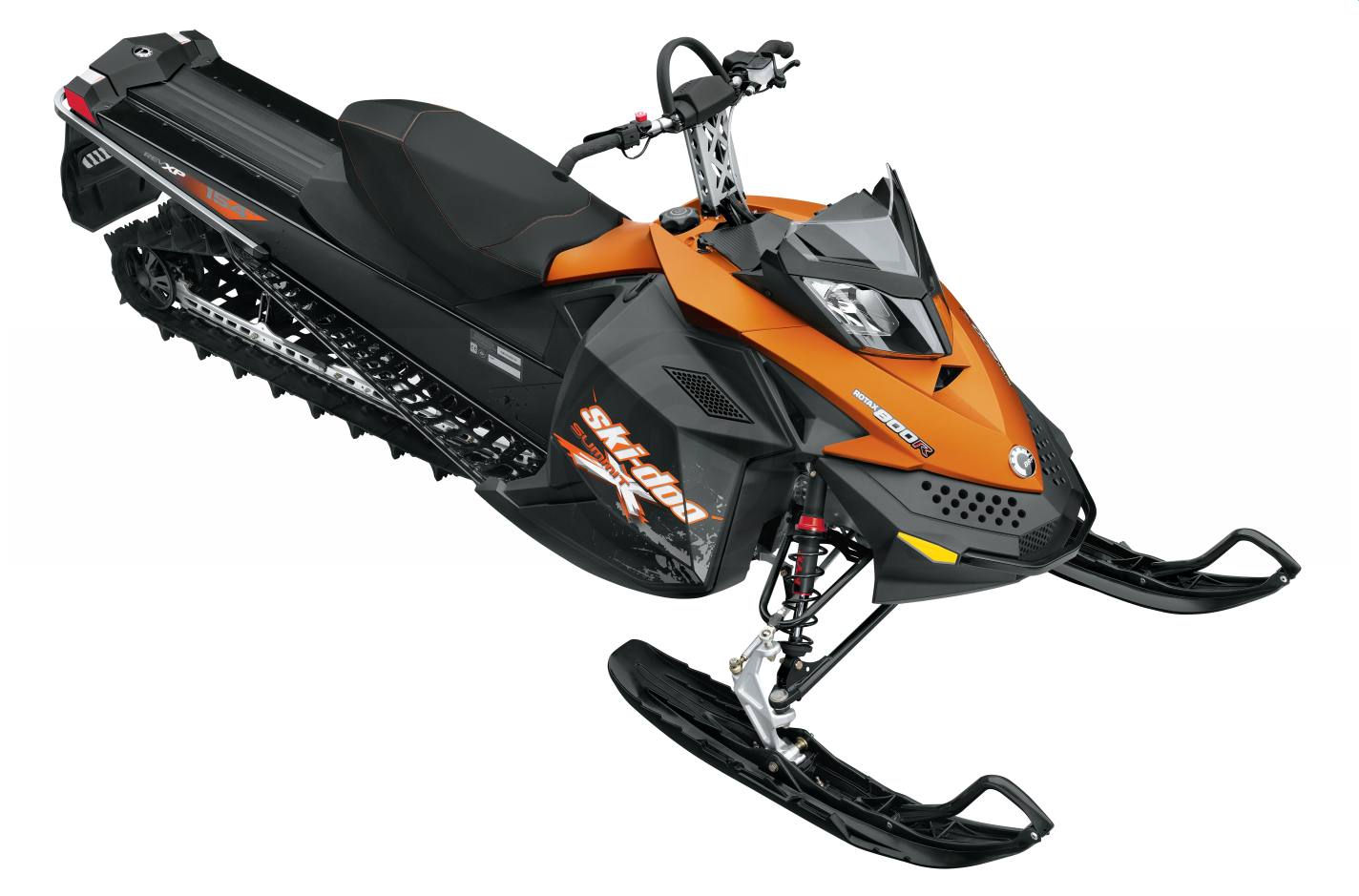

2010 Ski-Doo Summit X Rotax 800R PowerTEK 154"
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Frame: REV-XP
  • Skis: Pilot 6.9
  • Seating: REV-XP X Narrow
  • Handlebar: Aluminum with J-hooks / Riser block (205 mm / 8 in) / Mountain strap
  • Electric start: Optional
  • Reverse: RER
  • Heated throttle lever: Standard
  • Heated grips: Standard
  • Speedometer: Standard
  • Tachometer: Standard
  • Fuel gauge: Standard
  • Temperature gauge: Optional
  • Mirrors: Optional
  • Windshield: 140 mm / 5.5 in
  • Carbide runner: Standard
  • Hitch: Optional
Package Highlights
  • 151 hp Rotax® 800R PowerTEK engine
  • REV-XP platform
  • NEW REV-XP X Narrow seat
  • Brembo racing brake with braided
  • stainless-steel brake line
  • Lightweight chromoly front suspension
  • lower A-arm
  • SC™-5M rear suspension
  • HPG™ Plus shocks
  • PowderMax track lengths: 154-inch
  • Pilot™ 6.9 skis
  • Multi-function digital gauge w/display
  • Riser block / Low windshield
  • RER™ electronic reverse
  • Adjustable ski stance
Engine
  • Engine: Rotax 800R PowerTEK
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 799.5 cc / 48.8 in³
  • Bore: 82 mm / 3.2 in
  • Stroke: 75.7 mm / 3 in
  • Max. engine speed: 8150 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Premium unleaded
  • Min. octane: 91
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank capacity: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
Powertrain
  • Drive clutch type: TRA™ VII
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Small sprocket number of teeth: 21
  • Large sprocket number of teeth: 45 (146 in - 154 in) 49 (163 in)
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo racing brake with braided stainless-steel brake line
Suspension
  • Front suspension: Dual A-arm
  • Front shock: HPG Plus
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5M
  • Center shock: HPG Plus
  • Rear shock: HPG Plus
  • Rear suspension max. travel: 381 mm / 15 in
Dimensions
  • Vehicle overall length: 3310 mm / 130.3 in
  • Vehicle overall width: 1159 to 1204 mm / 45.6 to 47.4 in
  • Vehicle overall height: 1000 mm / 39.4 in
  • Official dry weight: 203 kg / 446 lb
  • Ski stance: 975 mm to 1018 mm / 38.4 to 40.1 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 175 mm / 6.9 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3923 mm / 154 in
  • Track profile height: 57.2 mm / 2.25 in
Color
  • Orange/Black
  • Deep Black

Specifications

Engine
Engine Type Rotax 800R PowerTEK
Displacement 799.5 cc (48.8 cu. in.)
Bore x Stroke Bore: 82 mm (3.2 in.); Stroke: 75.7 mm (3 in.)
Cylinders 2
Engine Cooling Liquid-cooled, 3-D R.A.V.E.™
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo racing brake with braided stainless-steel brake line
Drive Clutch TRA™ VII
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm
Front Travel 229 mm / 9 in
Rear Suspension SC-5M
Rear Travel 381 mm / 15 in.
Ski Type Pilot 6.9
Ski Stance 975 mm (38.4 in.) to 1018 mm (40.1 in.)
Track Dimensions Track nominal width: 406 mm (16 in.); Track nominal length: 154 in. (4141 mm)
General
Speedometer Standard
Tachometer Standard
Fuel Capacity 40 l (10.6 gal)
Dry Weight 203 kg (446 lbs.)
Windshield 140 mm (5.5 in.)
Color Orange/Black and Deep Black
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2010
Manufacturer Ski-Doo
Model Summit X Rotax 800R PowerTEK 154"
Style Mountain
MSRP* $13,449.00
Drivetrain
Brake Type Brembo racing brake with braided stainless-steel brake line
Drive Clutch TRA™ VII
Driven Clutch QRS
Engine
Engine Type Rotax 800R PowerTEK
Displacement 799.5 cc (48.8 cu. in.)
Bore x Stroke Bore: 82 mm (3.2 in.); Stroke: 75.7 mm (3 in.)
Cylinders 2
Engine Cooling Liquid-cooled, 3-D R.A.V.E.™
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer
Headlight
Fuel Capacity 40 l (10.6 gal)
Dry Weight 203 kg (446 lbs.)
Windshield 140 mm (5.5 in.)
Color Orange/Black and Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse RER
Mirrors Optional
Suspension
Front Suspension Dual A-arm
Front Travel 229 mm / 9 in
Rear Suspension SC-5M
Rear Travel 381 mm / 15 in.
Ski Type Pilot 6.9
Ski Stance 975 mm (38.4 in.) to 1018 mm (40.1 in.)
Track Type
Track Dimensions Track nominal width: 406 mm (16 in.); Track nominal length: 154 in. (4141 mm)
